Ackermann Steering Vehicle Simulation in ROS2 with Gazebo Sim Harmonic

This project features the simulation of a custom vehicle with Ackermann steering capabilities, developed using ROS2 and the Gazebo Sim Harmonic environment. The model integrates a variety of sensors and navigation tools for autonomous operation, making it one of the first implementations of an Ackermann steering vehicle in this simulation framework.

3D LiDAR Point Cloud Visualization	Warehouse Environment Model

If you like this project, consider giving it a ⭐ to show your support!

Table of Contents

• Ackermann Steering Vehicle Simulation in ROS2 with Gazebo Sim Harmonic
• Features
  • 1 Ackermann Steering
  • 2 ROS2 Communication
  • 3 Sensors
  • 4 Navigation
  • 5 Manual Control with external joystick
  • 6 Visualization
• Requirements
• Local Installation
• Docker Installation
• Usage
  • 1 Basic Simulation and Manual Control
  • 2 SLAM Simultaneous Localization and Mapping
  • 3 Navigation with Nav2
• Future Work
• Gallery
• TF Tree
• Star History

Features

1. Ackermann Steering

• A custom vehicle model built with realistic Ackermann steering dynamics for accurate maneuverability.

2. ROS2 Communication

• All sensor data and control signals are fully integrated into the ROS2 ecosystem for seamless interoperability.

3. Sensors

• IMU: Provides orientation and angular velocity.
• Odometry: Ensures accurate vehicle state feedback.
• LiDAR: Mounted for obstacle detection and environmental scanning. Supports 3D point cloud generation for advanced perception tasks.
• Cameras:
  • Front-facing
  • Rear-facing
  • Left-side
  • Right-side

  Note: By default, only the front camera is bridged to ROS 2.If you want to use all cameras (left, right, rear) in ROS 2,remove the # at the beginning of the relevant camera sections in saye_bringup/config/ros_gz_bridge.yaml to activate them (e.g., /camera/left_raw, /camera/right_raw, /camera/rear_raw).

4. Navigation

• Integrated with the Nav2 stack for autonomous navigation.
• AMCL (Adaptive Monte Carlo Localization) for improved positional accuracy.
• SLAM techniques implemented for real-time mapping and understanding of the environment.
• Fine-tuned parameters for optimized navigation performance.

5. Manual Control (with external joystick)

• Added support for joystick-based manual control in the simulation environment, enabling users to test vehicle movement interactively.

6. Visualization

• Full model and sensor data visualization in RViz2, providing insights into robot states and environmental feedback.

Requirements

• ROS2 (Humble)
• Gazebo Sim Harmonic
• RViz2
• Nav2

Local Installation

0. Your need to sure that installation of Gazebo Harmonic and ROS (ros_gz):
   sudo apt-get install ros-${ROS_DISTRO}-ros-gz
sudo apt-get install ros-humble-ros-gzharmonic (Only Humble version)
   More details about installation Gazebo and ROS: Link

1. Clone the repository:
   mkdir -p ackermann_sim/src && cd ackermann_sim/src
git clone https://github.com/alitekes1/ackermann-vehicle-gzsim-ros2
cd ..

2. Build the project: colcon build && source install/setup.bash

3. Set environment variables:

   # Set environment variables for current session
   export GZ_SIM_RESOURCE_PATH=$GZ_SIM_RESOURCE_PATH:/your/path/ackermann_sim/src/ackermann-vehicle-gzsim-ros2/
   export ROS_PACKAGE_PATH=$ROS_PACKAGE_PATH:/your/path/ackermann_sim/src/ackermann-vehicle-gzsim-ros2/

   For Permanent Setup:

   To make these environment variables permanent, add them to your .bashrc file:

   # Add environment variables to .bashrc
   echo 'export GZ_SIM_RESOURCE_PATH=$GZ_SIM_RESOURCE_PATH:/your/path/ackermann_sim/src/ackermann-vehicle-gzsim-ros2/' >> ~/.bashrc
   echo 'export ROS_PACKAGE_PATH=$ROS_PACKAGE_PATH:/your/path/ackermann_sim/src/ackermann-vehicle-gzsim-ros2/' >> ~/.bashrc

   # Apply changes
   source ~/.bashrc

   Note: Replace /your/path/ with your actual installation path.

Docker Installation

You can also run the simulation using Docker, which ensures a consistent environment across different systems.

Prerequisites

• Docker
• NVIDIA Container Toolkit (for GPU support)

Steps to Run with Docker

1. Clone the repository:

   mkdir -p ackermann_sim/src && cd ackermann_sim/src
   git clone https://github.com/alitekes1/ackermann-vehicle-gzsim-ros2
   cd ackermann-vehicle-gzsim-ros2

2. Build and run the Docker container:

      docker run -it \
      --name ackermann_sim \
      --hostname ackermann_sim \
      --env="DISPLAY=$DISPLAY" \
      --env="QT_X11_NO_MITSHM=1" \
      --volume="/tmp/.X11-unix:/tmp/.X11-unix:rw" \
      --privileged alitekes1/ackermann_sim:latest

3. If you want to additional terminal for same container

      docker exec -it ackermann_sim bash

Note: Inside the container, you can run the simulation commands as normal.

Usage

1. Basic Simulation and Manual Control

1. Launch the simulation:

   ros2 launch saye_bringup saye_spawn.launch.py

2. Control car:

   ros2 run teleop_twist_keyboard teleop_twist_keyboard

2. SLAM (Simultaneous Localization and Mapping)

• To run SLAM Toolbox for mapping, launch the following after starting the simulation:

  ros2 launch saye_bringup slam.launch.py



3. Navigation with Nav2

• To run the simulation with the Nav2 stack for autonomous navigation, launch the following after starting the simulation:

  ros2 launch saye_bringup navigation_bringup.launch.py

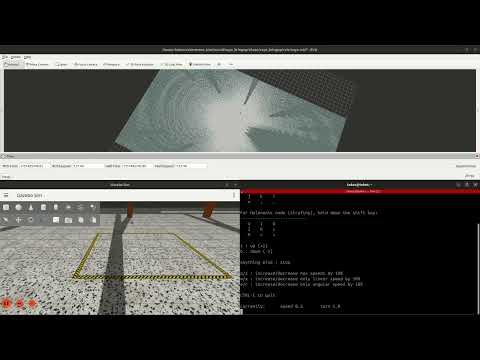

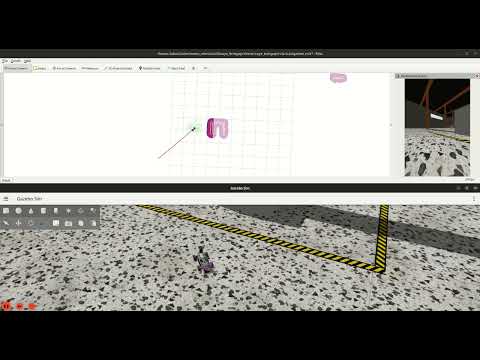

Note: The YouTube videos above are played at 4x speed. You can reach the videos by click on the images.

Future Work

1. 3D SLAM Support:
   • Train the vehicle to handle complex scenarios autonomously using advanced DRL algorithms.
2. Enhanced Features:
   • Explore additional sensor configurations and navigation strategies.
3. Nav2 entegration with 3D Localization
   • Instead of AMCL(2D), more accurate and robust algorithms implementation.

Gallery

3D LiDAR Point Cloud & Environment

3D LiDAR Point Cloud Visualization	Warehouse Environment Model

Vehicle & Navigation

Gazebo Sim Harmonic	RViz2

TF Tree

---

Star History
