maplibre-gl-polygon-patterns

SVG hatch/fill patterns for MapLibre GL JS polygons using fill-pattern. Built on textures.js.

Demo · npm

---

Install

npm install @leoneljdias/maplibre-gl-polygon-patterns

Or via CDN (ESM):

<script type="module">
  import PolygonPatterns from "https://unpkg.com/@leoneljdias/maplibre-gl-polygon-patterns/dist/index.js";
</script>

Or via CDN (UMD):

<script src="https://unpkg.com/@leoneljdias/maplibre-gl-polygon-patterns/dist/index.umd.js"></script>
<script>
  const patterns = new PolygonPatterns(map, options);
</script>

Usage

import PolygonPatterns from "@leoneljdias/maplibre-gl-polygon-patterns";

const patterns = new PolygonPatterns(map, {
  prewarmOnLoad: true,
  prewarmColor: "#333333",
});

// Generate and register a pattern image, then use it in a layer
await patterns.ensure("lines-crossed", "#c65b2e");

map.addLayer({
  id: "polygons",
  type: "fill",
  source: "my-source",
  paint: {
    "fill-pattern": patterns.buildFillPatternExpr(),
    "fill-opacity": patterns.buildFillOpacityExpr(0.8),
  },
});

Pattern images are rendered as SVG via textures.js, rasterised to canvas at 4× resolution, and registered with map.addImage() for use with MapLibre's native fill-paint paint property. Only unique pattern+colour combinations are generated — duplicates reuse the cached image.

Random mode

Assign a random pattern + colour to every polygon in a dataset. Works with the built-in graph coloring to ensure adjacent polygons (sharing an edge) get different patterns:

import PolygonPatterns from "@leoneljdias/maplibre-gl-polygon-patterns";

const patterns = new PolygonPatterns(map, { prewarmOnLoad: false });

// 1. Pick colours and pattern IDs
const COLORS = ["#2563eb", "#dc2626", "#16a34a"];
const PATTERN_IDS = ["lines-crossed", "circles-default", "paths-hexagons"];

// 2. (Optional) Colourise: adjacent polygons get different patterns
const assignment = PolygonPatterns.colorize(
  features.map((f) => ({ id: f.id, coordinates: f.geometry.coordinates })),
  PATTERN_IDS,
);

// 3. Set geoglify:* properties on each feature
features.forEach((f) => {
  const pid = assignment.find((a) => a.id === f.id).patternId;
  f.properties["geoglify:patternEnabled"] = true;
  f.properties["geoglify:patternId"] = pid;
  f.properties["geoglify:patternColor"] = "#2563eb";
  f.properties["geoglify:patternOpacity"] = 80;
});

// 4. Generate & register only the pattern+colour combos you need
await Promise.all(
  [...new Set(features.map((f) => f.properties["geoglify:patternId"]))].map((pid) =>
    patterns.ensure(pid, "#2563eb"),
  ),
);

// 5. Use the built-in expressions in your layers
map.addLayer({
  id: "polygons",
  type: "fill",
  source: "my-source",
  paint: {
    "fill-pattern": patterns.buildFillPatternExpr(),
    "fill-opacity": patterns.buildFillOpacityExpr(0.85),
  },
});

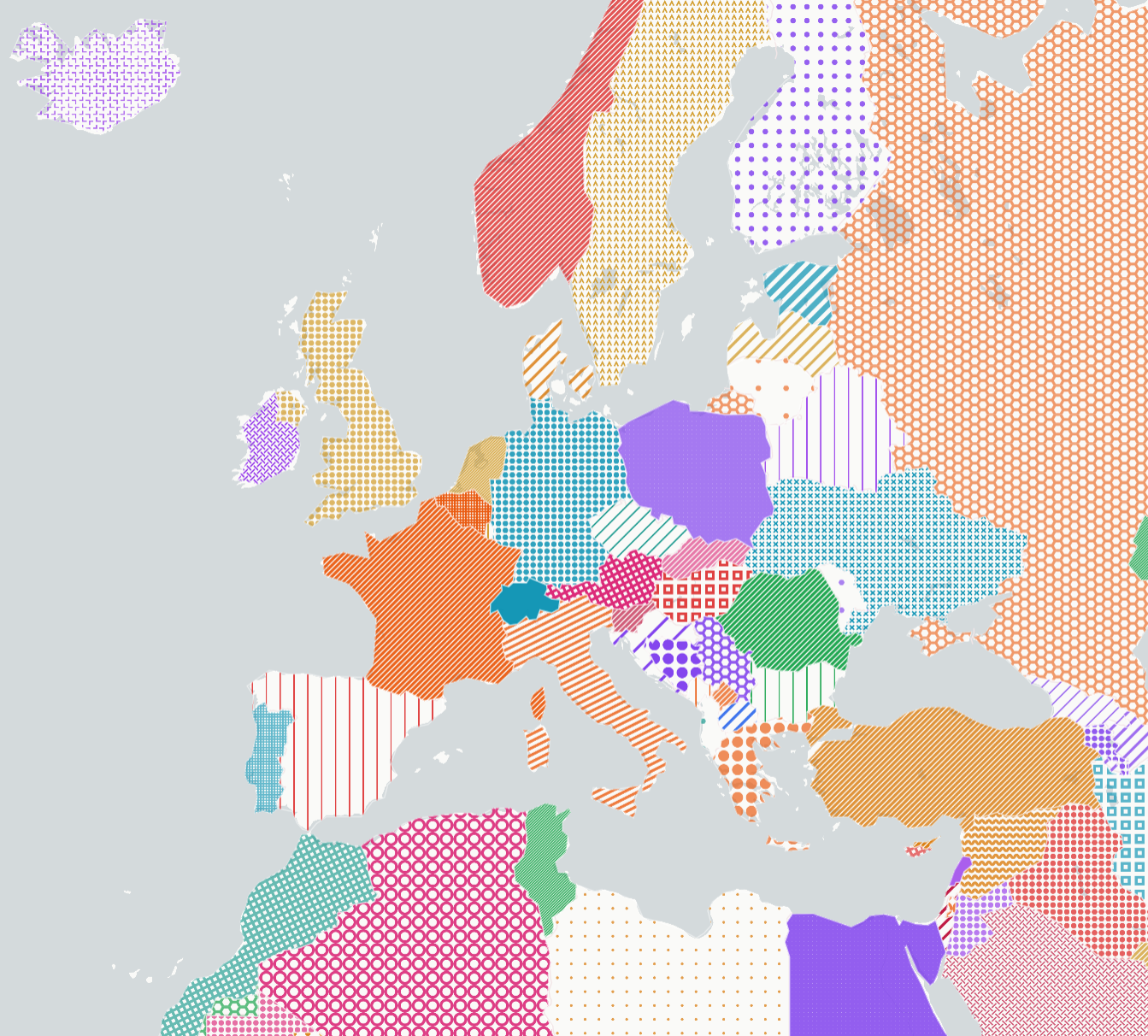

See the demo for a complete working example with world countries.

Options

Option	Default	Description
imagePrefix	"maplibre-pattern"	Prefix for image names registered in the map
dummyPatternId	"maplibre-pattern-dummy"	1×1 transparent fallback image for non-pattern features
prewarmOnLoad	true	Generate all patterns with prewarmColor on setup
prewarmColor	"#333333"	Colour used during prewarm
propertyPrefix	"geoglify"	Prefix for feature properties (:patternEnabled, etc.)
patterns	[…]	Array of { id, factory } pattern definitions (28 built-in)
tileSizes	{…}	SVG viewport dimensions per pattern id

API

• ensure(patternId, color) — Generate and register a pattern image; returns the image name
• prewarm(color) — Generate all patterns with a given colour
• applyToLayer(layerId, opts) — Apply fill-pattern and fill-opacity expressions to an existing layer
• buildFillPatternExpr() — Returns a MapLibre paint expression for fill-pattern
• buildFillOpacityExpr(fallback) — Returns a MapLibre paint expression for fill-opacity
• getImageName(patternId, color) — Resolve the image name registered in the map
• randomPatternId() — Return a random pattern id
• setOptions(patch) — Update options after construction
• setPatterns(patterns) — Replace pattern definitions
• setTileSizes(sizes) — Replace tile size definitions
• destroy() — Clean up internal state

Static

• PolygonPatterns.colorize(features, patternIds) — Assign distinct patterns to adjacent polygons (graph coloring). features is an array of { id, coordinates } where coordinates is the geometry.coordinates from GeoJSON. Returns [{ id, patternId }]. Ported from geoglify.com.

Contributing

Any contributions to this project are more than welcome. Feel free to reach us and we will gladly include any improvements or ideas that you may have. Please, fork this repository, make any changes and submit a Pull Request and we will get in touch!

License

MIT

by Leonel Dias
